Features:-
>New Flagship AK4499EX DAC Chipset with AK4191 Modulator.
>Professionally designed amplifier that offers powerful 1.2W output power.
>Multiple Headphone Output Ports(3.5mm/4.4mm/6.35mm).
>Rear RCA Line-Out Function.
>High-Performance XMOS USB Processor supporting Hi-Res Audio signal decoding.
>8x MQA decoding.
>Combined input for Coaxial and Optical SPDIF connections.
>Three-level Gain.
>Six Built-in Digital Filters.
>High-Resolution Bluetooth Connectivity with LDAC protocol.
>1.44” Display Screen.
>MicroSD card slot.
>Compatible with Eddict Player application.
>Battery Capacity: 6800mAh.
>Battery Life: Up to 10H on SE/U p 8H
Technical Specifications:-
>DAC Chipset: AK4499EX AK4191EQ.
>Amp Circuit: TPA612OA2/OPA2211?MUSES8920.
>USB Processor: XMOS XU316.
>Platform Ingenic X2000.
>Output Options: 6.35 4.4 3.5mm.
>RCA Line-Out.
>Dimensions: 142x85x25mm.
>Weight: 325.2 grams.
Output Parameters(RCA):-
>Output Level: 2.4 Vrms.
>Frequency Response Range: 20Hz-40kHz.
>THD N: 0.0006%.
>Dynamic Range: 121dB.
>SNR: 121dB.
>Output Impedance: 47kΩ.
Output Parameters(Single-Ended):-
>Output Power: 28mW(Low-gain), 112mW(Mid-Gain), 450mW(High-Gain) @ 32Ω.
>Frequency Response: 20Hz-40kHz.
>THD N: 0.0009%.
>Channel Sepration: 75dB@32Ω.
>DNR: 121dB.
>SNR: 121dB.
>Noise: >113dB.
>Output Impedance: <1Ω.
Output Parameters(Bal Output):-
>Output Power: 87mW(Low-gain), 348mW(Mid-Gain), 1300mW(High-Gain) @ 32Ω.
>Frequency Response: 20Hz-40kHz.
>THD N: 0.0007%.
>Channel Sepration: 115dB@32Ω.
>DNR: 123dB.
>SNR: 123dB.
>Noise: >111dB.
>Output Impedance: <1Ω.

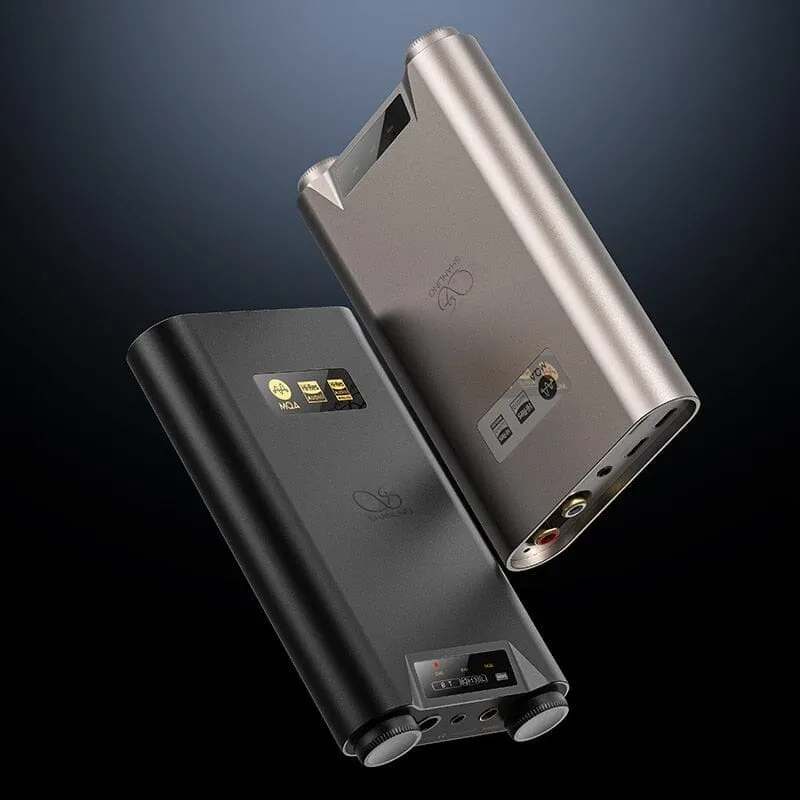

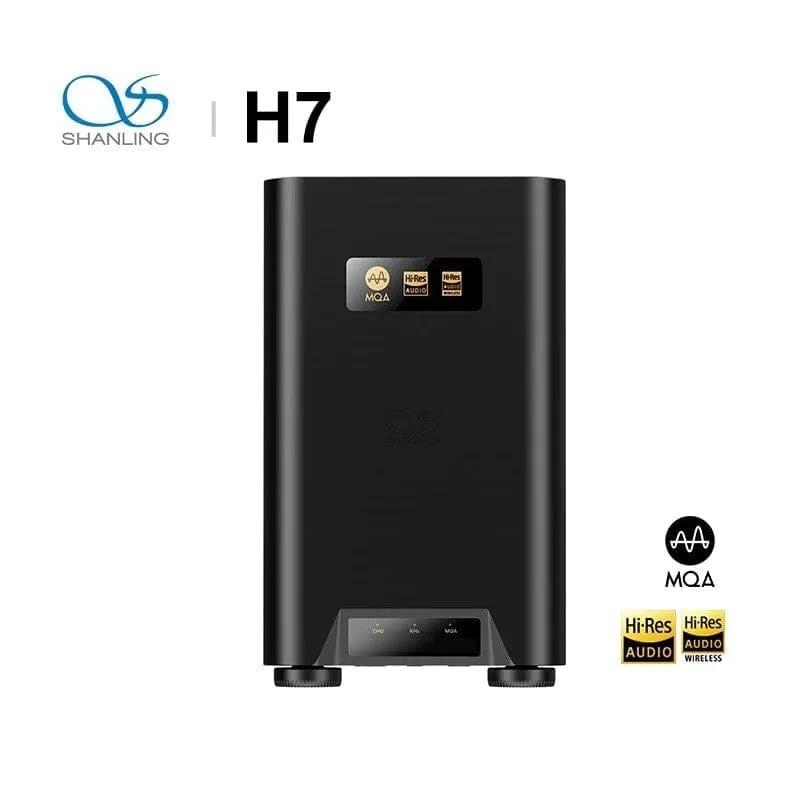

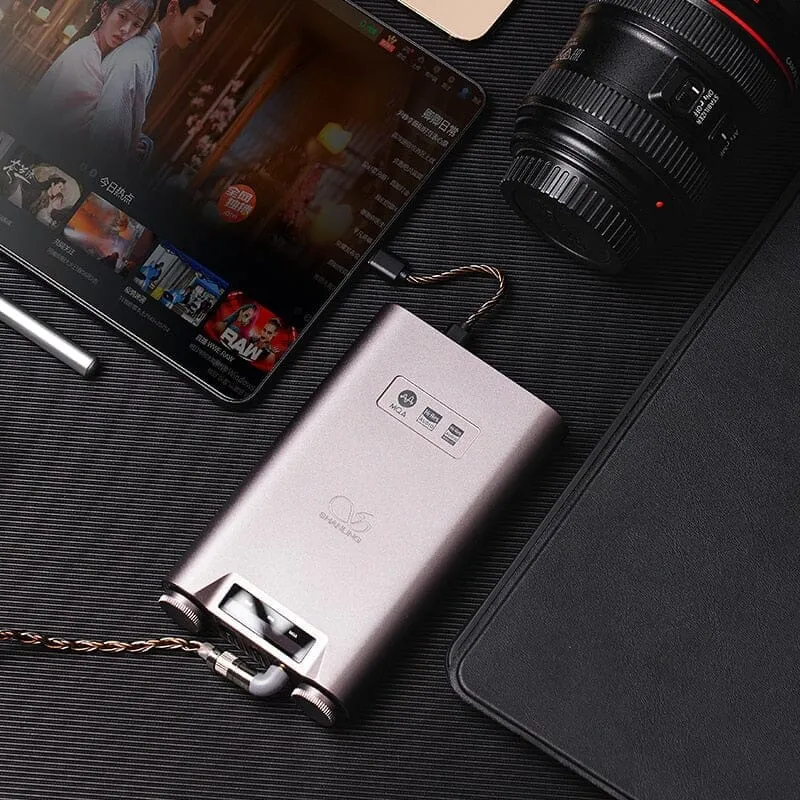

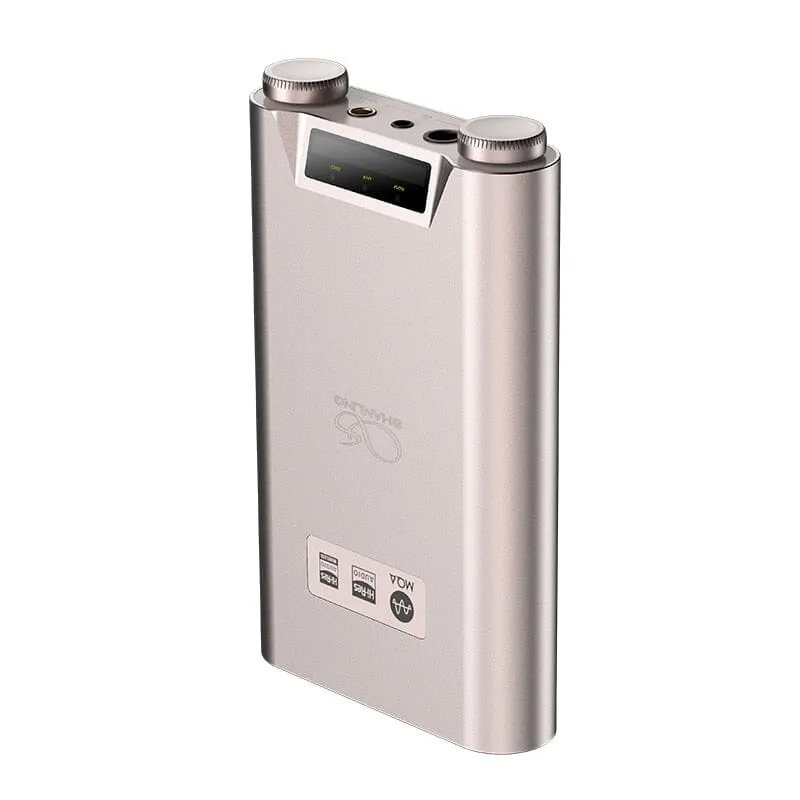

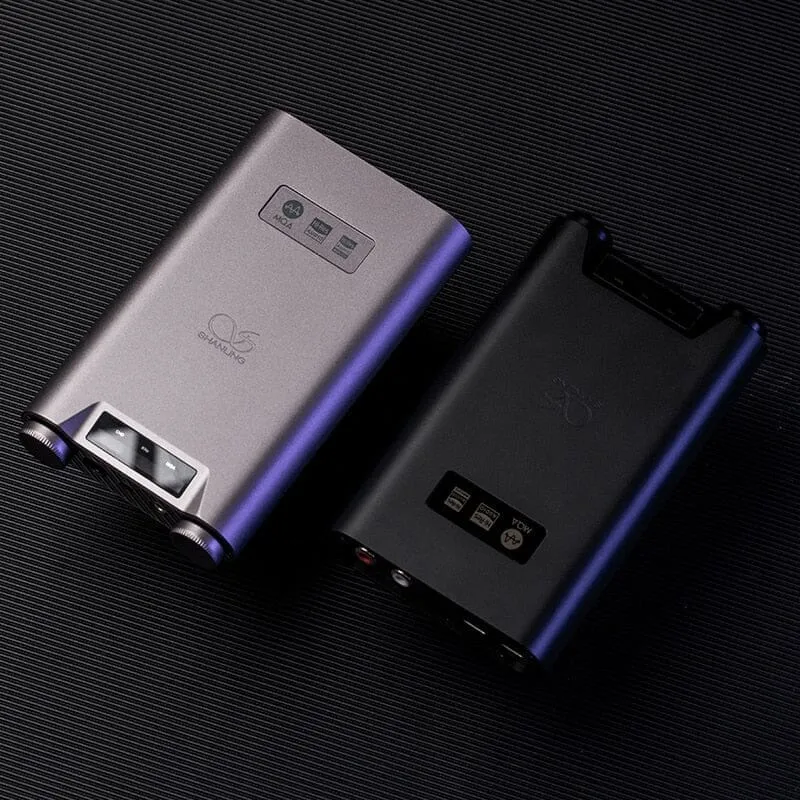

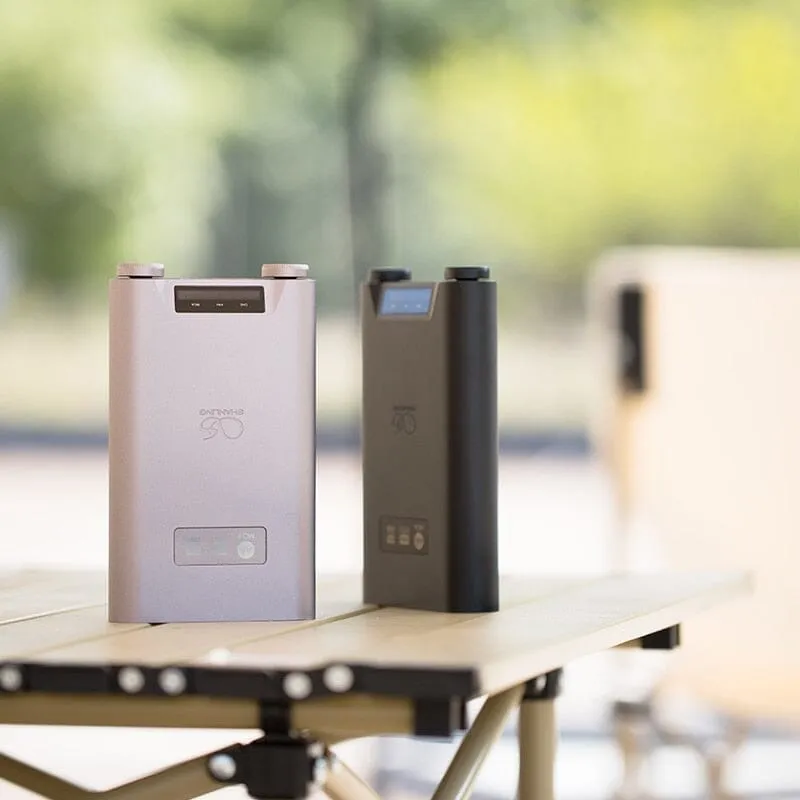

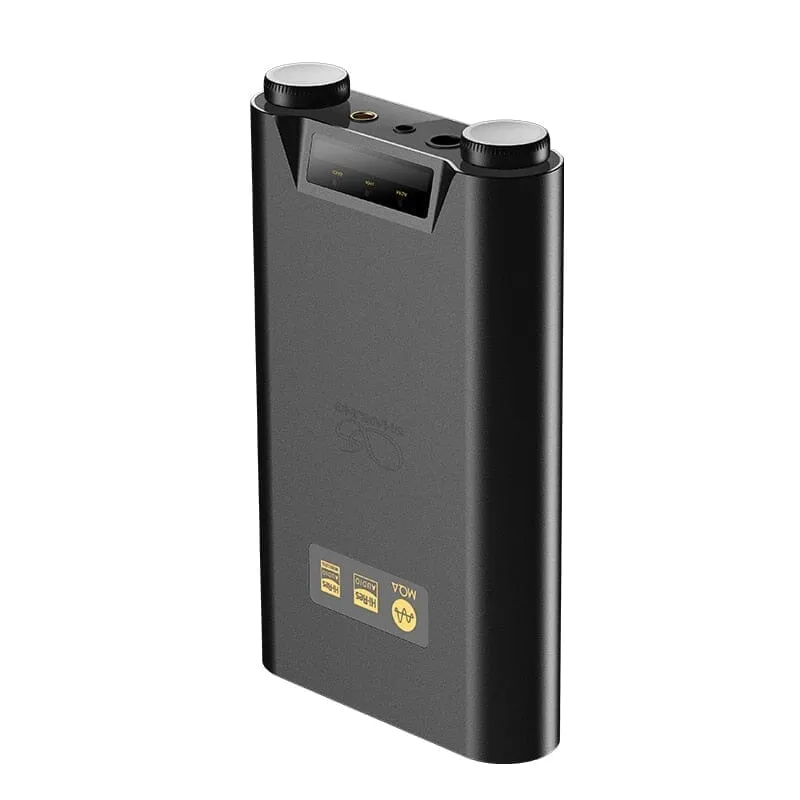

Shanling H7 is a brand new high-end portable USB DAC/AMP designed with a flagship-grade AKM4499EX DAC chipset. It’s a complete Hi-Res audio package that packs top-quality components on its audio circuitry promising quality sound for its users. Shanling has featured a self-developed high-power amp circuitry, that provides up to 1.3W of clean output at 32Ω of load. H7 is compatible with Eddict player application on smartphones. It can read microSD cards with up to 2TB capacity and can playback most leading formats from it as well. Along with headphone output, as we normally see on portable DAC/AMPs, the Shanling H7 also has an analog line-out function with RCA ports on the back!!
Premium Rich Sound With AKM Flagship DAC Chipset:-
Shanling H7 is designed with premium DAC circuitry. The device houses AKM’s flagship AK4499EX DAC chip with an AK4191EQ modulator. AK4499EX is a 32-Bit Velvet Verita sound DAC chipset that is known for its organic, rich tonality, and exceptionally clean high-resolution audio signal decoding with ultra-low distortion and noise-free background.
Premium XMOS USB Processor:-
Shanling has trusted XMOS’s latest XU316 16-core USB processor chipset. XU316 is the latest-generation USB processor that brings unprecedented signal transmission with lower delay and lag during transmission. H7 supports high-resolution 32-Bit/768kHz PCM and native DSD512.
8x MQA Decoding:-
Along with high-resolution PCM and DSD audio signals, Shanling H7 also supports studio-grade MQA file unfolding. The H7 is an MQA-certified device and it supports 8x MQA unfolding.
Multiple Input/Output Options:-

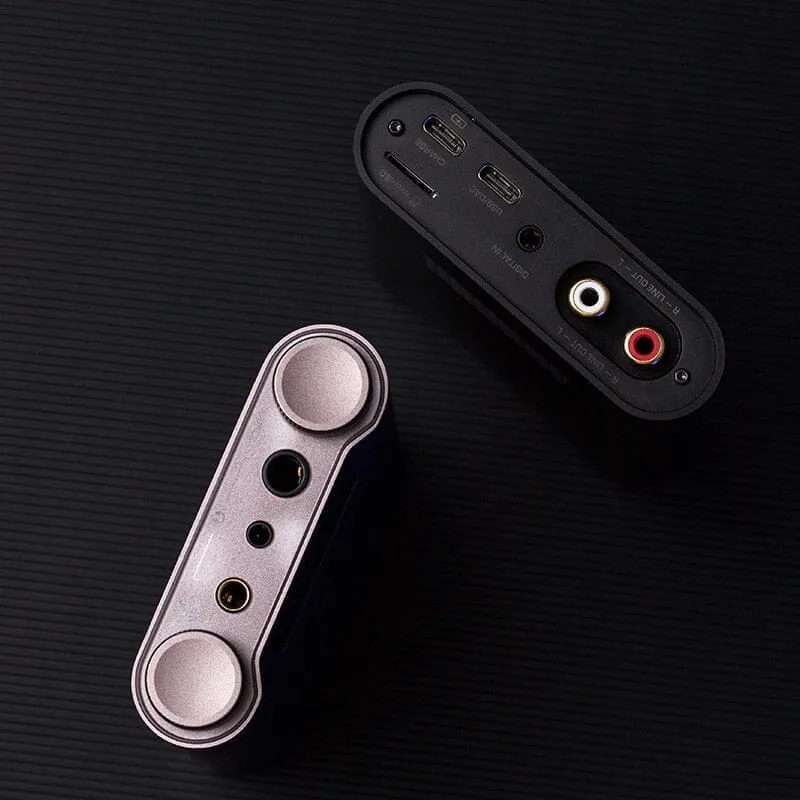

Shanling H7 portable USB DAC/AMP features multiple input options including USB, Coaxial, Optical, and Bluetooth. It even has a microSD card slot that supports a microSD card with a 2TB Capacity. Bluetooth connectivity on the H7 is only for signal input, it can’t transmit the BT signal. As for output, we get three headphone output ports(6.35mm, 4.4mm, and 3.5mm), and a line-out RCA port.
High-Power Amplification:
Shanling H7 features a specially developed high-power amplification circuitry. Designed with TPA612OA2/OPA2211/MUSES8920 high-perf chips, H7 delivers up to 1300mW of clean output through the balanced port on high-gain mode.
MicroSD Card Slot & Eddict Player Compatibility:-
Shanling H7 supports microSD cards with up to 2TB capacity. It allows for direct playback and you can easily access the playback via Eddict music player application on your smartphone. Shanling H7 can also be used as a completely independent player.
Up to 10 Hours of Continuous Music Playback:-
Shanling H7 houses a large 6800mAh battery pack that provides up to 10 hours of continuous music playback on a single charge. It supports quick charging as well so that the big battery charges quickly as well.
