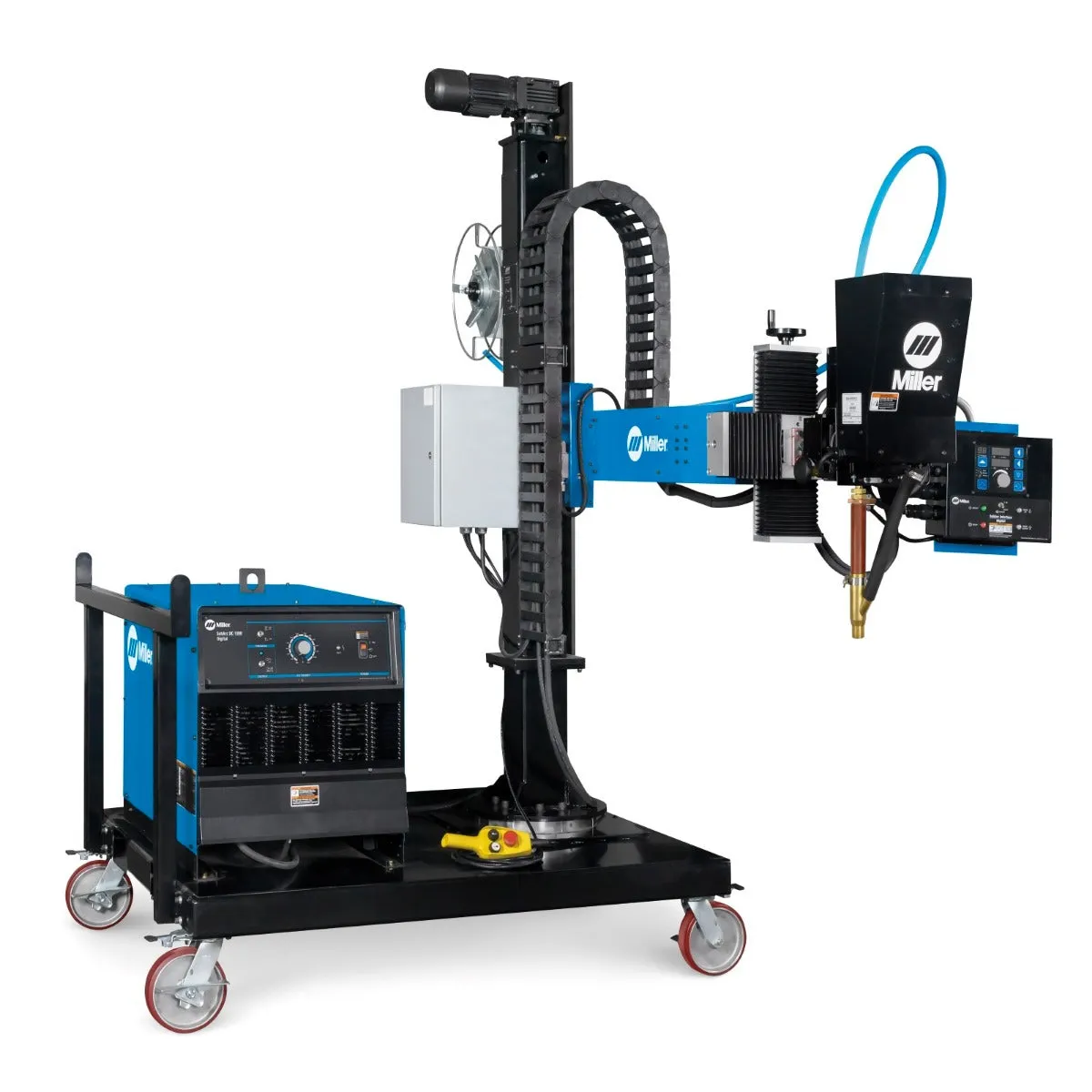

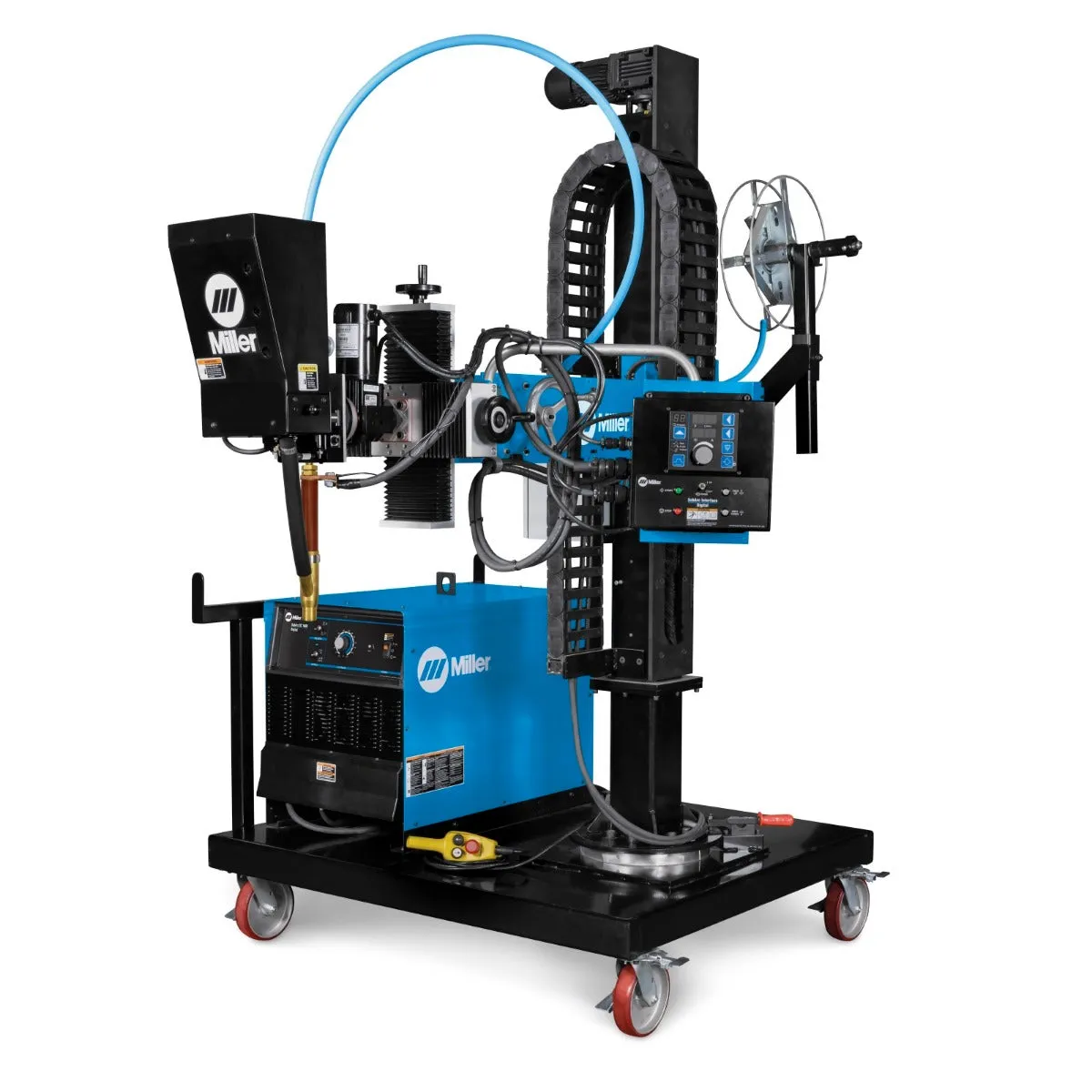

The Miller Subarc DC 1000 Digital Portable welding system offers the mobility needed for shipbuilding and pipe applications. The self contained system houses column, boom, and power source on a mobile platform.

Features
• Digital process control technology
• Highly reliable thyristor power regulation
• Digital control improve performance and integration
• Standard Modbus connection
• Thermal overload protection
• Line voltage compensation
• Fan-on demand

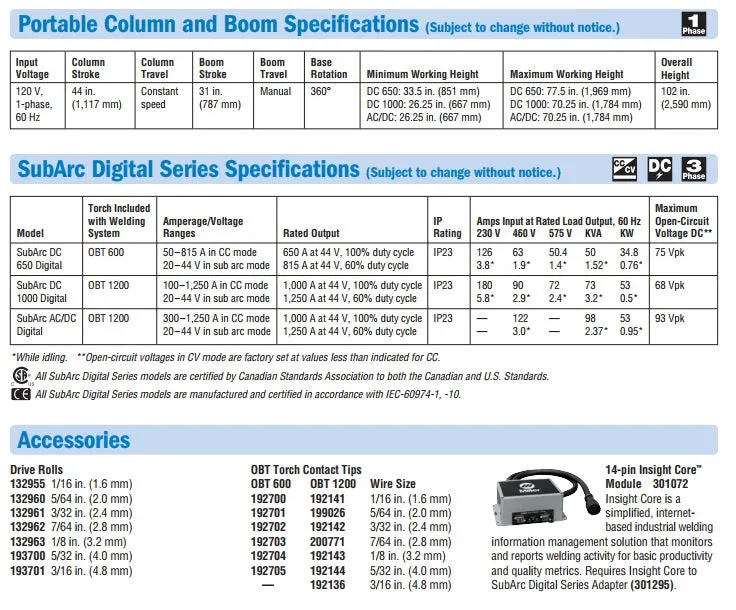

Quick Specs
• 3-Phase Only
• Amperage Range: 100-1,250A in CC mode
• Rated Output: 1,000A @ 44V, 100% Duty Cycle
• Amperage Draw for Power Source: 180A @ 230V | 90A @ 460V | 72A @ 575V
• Column Stroke: 44 in
• Column Travel: Constant Speed
• Boom Stroke: 31 in
• Boom Travel: Manual
• Base Rotation: 360°
• Minimum Working Height: 33.5 in
• Maximum Working Height: 77.5 in
• Overall Height: 102 in
• Weight: 2140 lbs

Includes
• Portable column and boom
• SubArc DC 1000 Digital power source
• SubArc interface digital and control cable
• SubArc wire drive 400 digital low voltage
• 25lb capacity flux hopper with valve
• 60lb wire reel and support assembly
• OB 600 torch
• Wire straightener
• Manual cross slides

Drive Rolls and Contact Tips are sold Separately
